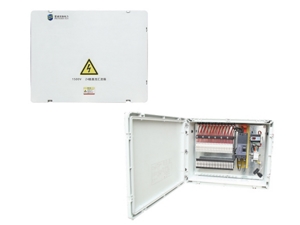

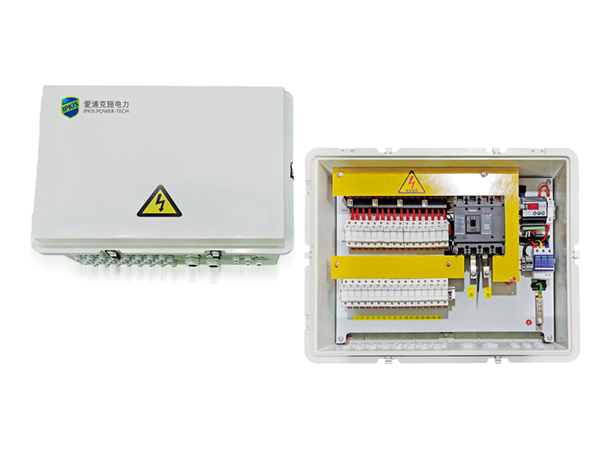

1000V PV DC Combiner Box

IPKIS offers PV combiner boxes designed for use in 1000V DC voltage solar distribution systems. These DC combiner boxes are tailored to accommodate 8 to 12 parallel voltage inputs, ensuring safety with a robust photovoltaic protection system including dedicated DC input fuses, a plastic shell DC output circuit breaker, and a specialized lightning protection module.

Moreover, these boxes can be customized with anti-backflow diodes, meeting even higher distribution demands as required by solar distribution businesses.

Request a Quote
PC/ABS Plastic Enclosures
Features
  • Our PV DC combiner boxes boast self-developed SMC fiberglass-reinforced plastic strips in-house, ensuring excellent sealing, robustness, and resistance to corrosion.
  • Each component is meticulously selected to align with the combiner box’s voltage level and is certified by esteemed organizations like TUV and CE.
  • Our PV DC combiner boxes are shaped using a 630-ton molding press, forming a fiberglass-reinforced plastic casing that is securely sealed with silicone rubber gaskets, achieving an impressive IP67 protection rating.
  • Internal live parts are shielded by flame-retardant, anti-static, and high-temperature-resistant PC transparent covers.
  • The arrangement of fuses and circuit breakers is methodical, with clear markings corresponding to precisely labeled input and output connectors located at the bottom of the box, thereby minimizing the potential for wiring errors.
  • IKPIS offers waterproof connectors with IP68 protection rating or MC4 connectors.
  • The internal connecting wires strictly adhere to IEC specifications, utilizing specialized photovoltaic cables.
  • IKPIS prioritizes convenience in our design. Input fuses and output circuit breakers are arranged vertically for ease of on-site maintenance and operation.
  • Additionally, ample space is allocated beneath the fuses/breakers, facilitating effortless on-site wiring.
Technical Data
Model PVC-8/1000V PVC-12/1000V PVC-16/1000V
PV Array System Voltage (V, DC) 1000V
Maximum Number of Parallel Inputs in PV Array 8 12 16
Number of Output Channels 1
Maximum Input Current per Channel (A) 25
Positive and Negative Wire Diameter for String Inputs (mm²) 4-6
Positive and Negative Wire Diameter for Outputs (mm²) 2*50-120
Ground Wire Diameter (mm²) ≥16
Protection Features
PV-dedicated DC Input Fuse Rated Voltage: 1,000V
Rated Current: 12-32A
Breaking Capacity: 20kA
PV-dedicated DC Output Circuit Breaker in Plastic Enclosure Rated Voltage: 1,000V
Rated Current: 125-250A
Equipped with auxiliary contact for output signal
PV-dedicated Lightning Protection Module In: 20kA
Imax: 40kA
Ups: 4kV
Anti-backflow Diode Optional
Environment Conditions
Protection Rating IP67
Temperature and Humidity
  • Please provide specific details if the device will be used in areas with gases.
  • Temperature Range: -25°C to +50°C
  • Storage Temperature Range: -40°C to +70°C
  • Humidity: 0% to 95%
  • No condensation, no corrosive elements
Altitude ≤2,000m
For the operating location with an altitude higher than 2,000m, we offer customized components.
Salt Spray Resistance Salt spray test
Standard: 336h
Optional: 500h
Smart Communication
Measurement Hall Isolation Measurement
Communication Port Equipped
Communication Protocol RS 485/Modbus-RTU
Functions
  • Measurement of string current, total voltage, and temperature inside the box
  • Status monitoring of circuit breaker status, lightning arrester
  • Alerting and debugging.
Power Supply Self-supply
Safety
Busbar Overlapping large-section nickel-coated copper bars
Protection PC insulated enclosure
Electrical Clearance / Creepage Distance ≥14mm/ ≥25mm
Insulation Resistance >20MΩ
AC Withstand Voltage AC4400V,1MIN
Enclosure (with Rain Cover) PC transparent shell
Enclosure Material SMC
Protection Rating IP67
Terminal Block PA66, IP68
Cable Connector MC4, IP67 (customizable)
Dimensions (Width*Height*Depth, mm) 730*580*260 730*580*260 730*580*260
Mounting Dimensions (mm) 612*551 612*551 612*551
Mounting Method Vertical (also available for horizontal mounting)

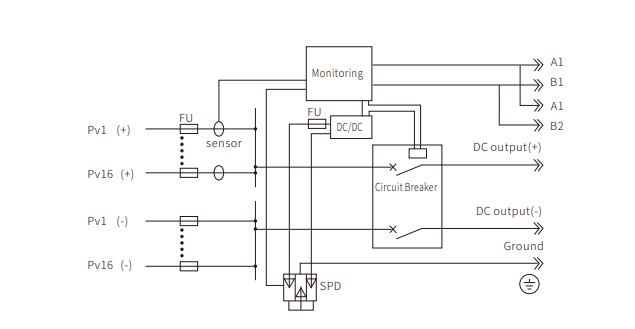

Schematic Diagram
Schematic Diagram
More Power Accessories
FAQS
We specialize in providing accessories for photovoltaic systems, including PV combiner boxes, fiberglass plastic enclosures, DC fuses, solar connectors, and more.

Our photovoltaic accessories are mainly utilized in the solar energy sector, catering to solar power project contractors, manufacturers of photovoltaic distribution equipment, as well as traders in the field.

We have more than 20 years of experience in manufacturing photovoltaic distribution products.
Standard specifications are available for plastic enclosures, photovoltaic fuses, and solar connectors. On the other hand, AC/DC combiner boxes are customized based on distribution designs.
